Manufacturing decision
Choose hole geometry and sheet gauge together, then validate formed stiffness before locking the coating and foam stack.
Manufacturing Application Studies
How professional audio hardware becomes production-ready.
These representative, anonymized studies show the engineering questions, manufacturing routes, and inspection evidence behind common speaker and amplifier components. Project limits are always confirmed from the controlled customer drawing.

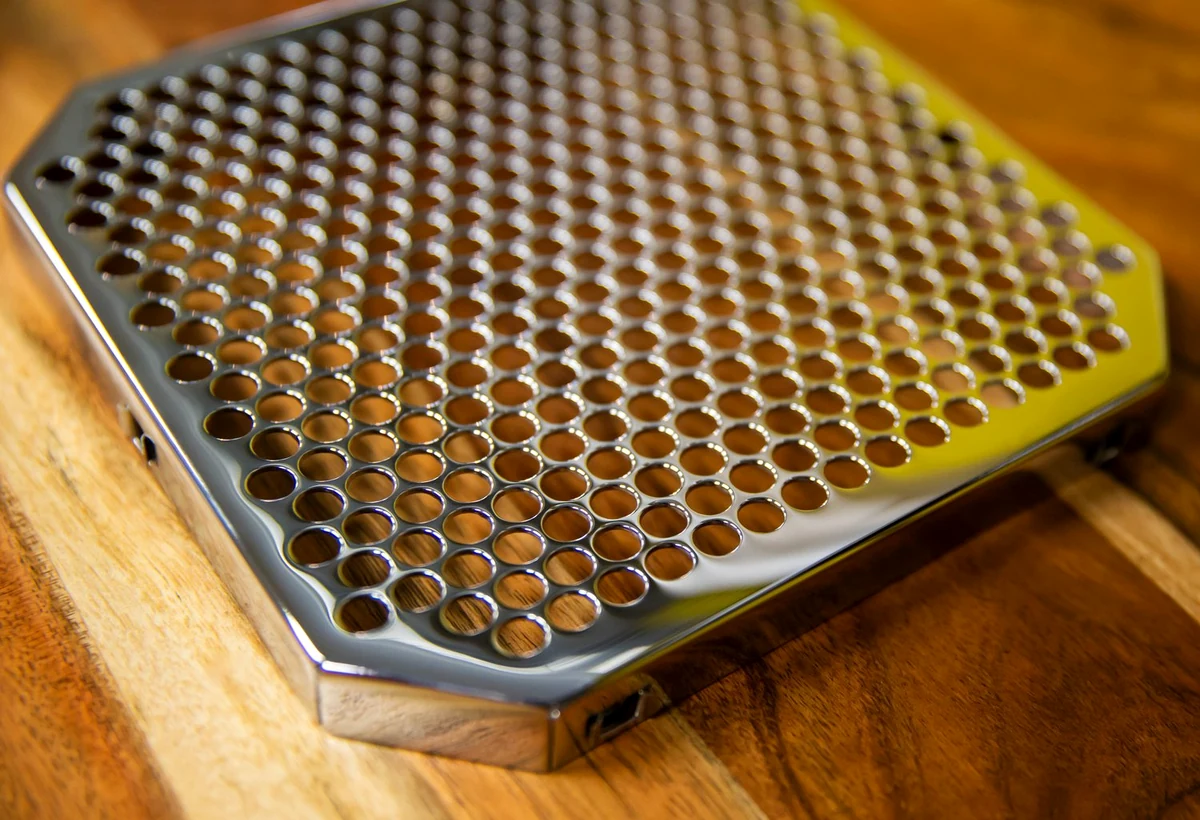

01 · Speaker Grille System
Balance acoustic opening, impact resistance, and cabinet fit.
A grille is not simply perforated sheet. Open area influences acoustic transparency; bridge width and formed depth influence stiffness; coating thickness and foam influence final fit.
- Typical route
- Perforation or laser cutting · forming · deburring · coating · foam assembly
- Review inputs
- Driver projection, cabinet opening, edge retention, foam stack, cosmetic face, service access
Inspection evidence
Hole pattern and pitch, overall profile, edge condition, coating appearance, fit fixture, and approved visual standard.

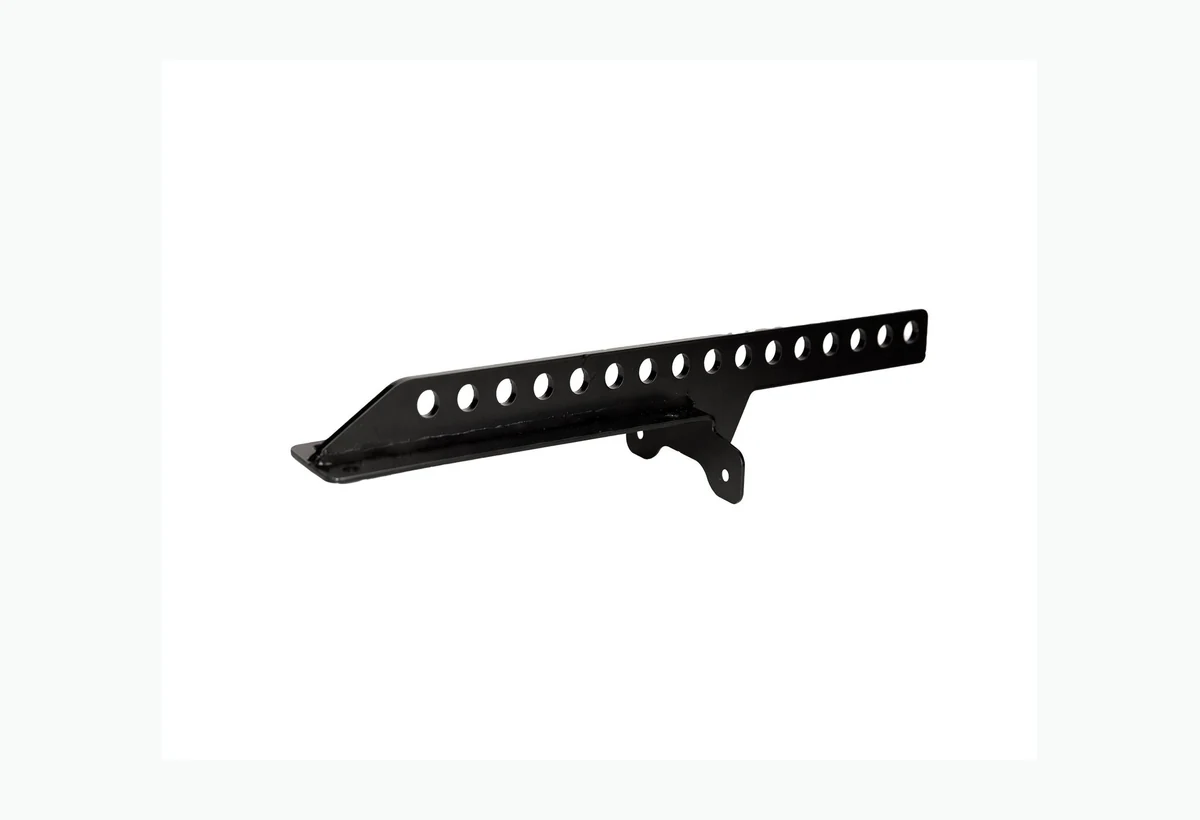

02 · Line Array Rigging Hardware
Protect the load path from drawing release through final finish.
Rigging components need a different review discipline from cosmetic enclosure parts. Material identity, load direction, hole position, edge condition, joining, heat treatment, and finish interfaces must be agreed before production.
- Typical route
- Certified stock · CNC or laser cutting · bending · controlled joining · finish · dimensional inspection
- Review inputs
- Load case, safety factor owner, mating pins, hole wear, bend orientation, critical dimensions, corrosion environment
Manufacturing decision
Separate safety-critical dimensions and material requirements from general cosmetic features on the drawing and inspection plan.
Inspection evidence
Material record, first-article dimensions, gauge or fixture result, finish record, and agreed sampling plan. Structural certification remains project-specific.

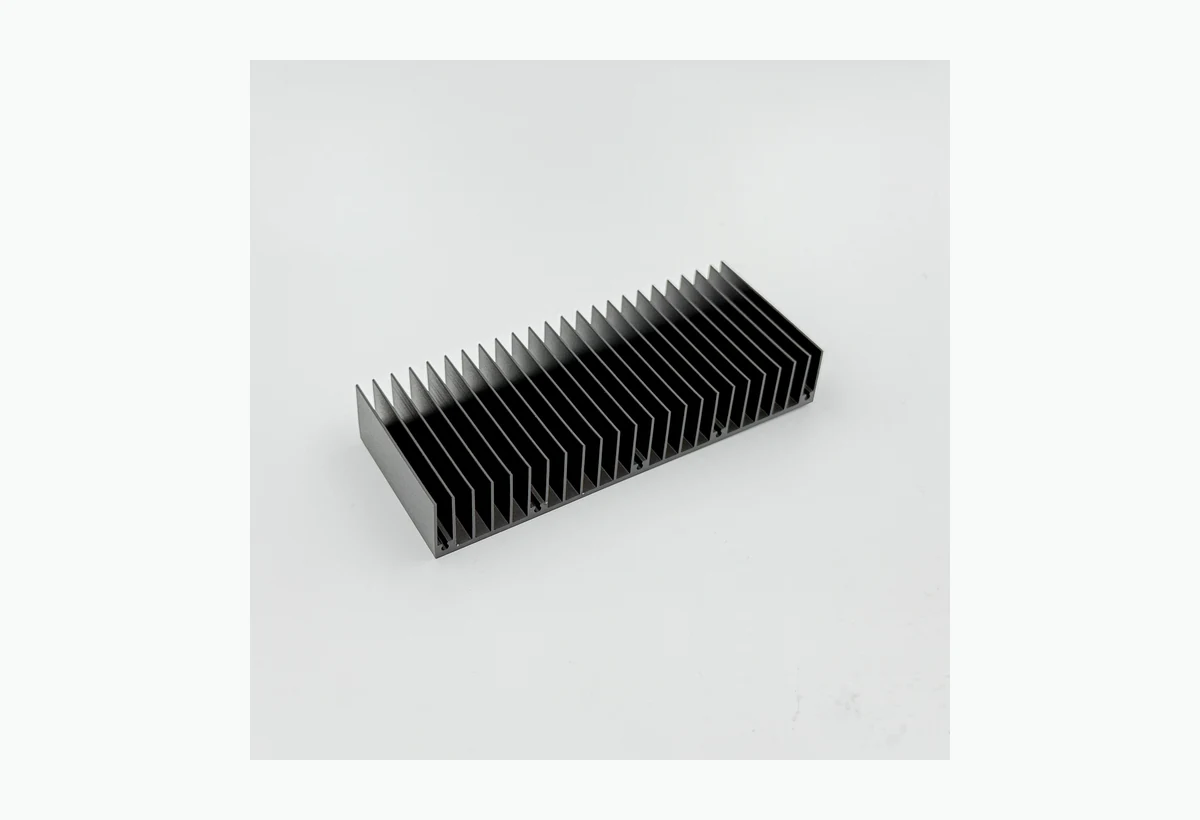

03 · Amplifier Thermal Housing
Treat heat flow, machining, finish, and assembly as one system.
An amplifier housing can combine an extrusion, machined thermal interfaces, cosmetic outer faces, threaded assembly points, connector cutouts, and electrically sensitive finish requirements.
- Typical route
- Extrusion or billet · CNC machining · deburring · cleaning · masking · anodizing · assembly check
- Review inputs
- Thermal interface flatness, PCB and connector datums, thread engagement, airflow, finish masking, cosmetic zones
Manufacturing decision
Define functional datums and thermal contact zones before applying cosmetic tolerances to the rest of the housing.
Inspection evidence
Datum-based dimensions, flatness where specified, thread gauges, finish sample, mask boundary, and trial assembly.
04 · Molded Horn & Functional Plastic
Preserve acoustic geometry while designing for molding and assembly.
Waveguides, horns, handles, and speaker frames combine visible surfaces with ribs, bosses, clips, draft, shrinkage, and fastening interfaces. The best time to resolve those conflicts is before mold steel is cut.
- Typical route
- DFM · material review · mold design · sampling · dimensional and appearance approval · production
- Review inputs
- Acoustic surfaces, wall transitions, draft, rib and boss design, gate and ejector zones, texture, insert or fastener strategy
Manufacturing decision
Protect acoustic and assembly-critical surfaces, while allowing tooling-led adjustments in hidden structural regions.
Inspection evidence
Approved sample, critical dimensions, texture and color standard, assembly fit, and controlled change record.
Images are representative application and component references. Numerical limits, validation methods, certifications, and acceptance criteria are confirmed for each project from the customer drawing and written quotation. We do not publish customer identities or confidential designs.
