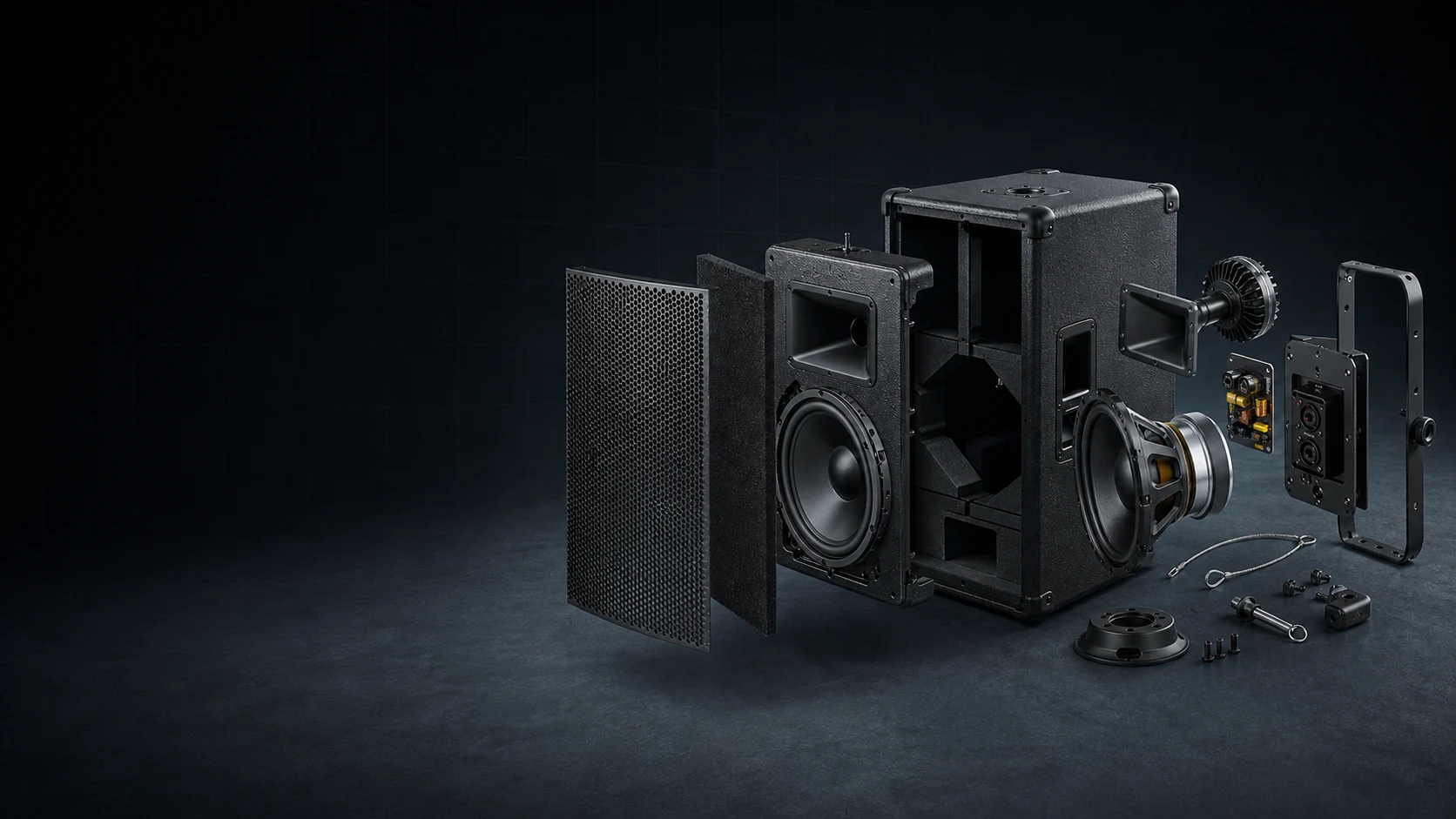

Interactive Stage Speaker Assembly

Inside the stage speaker.

Explore the grilles, rigging, brackets, chassis, molded hardware, and precision interfaces we manufacture for professional audio systems.

Explore component families

Product Families

One system. Six manufacturing disciplines.

Choose the component family closest to your project. Geometry, material, tolerance, finish, inspection, and packing are then defined by your drawings and application requirements.

Black line array rigging rail with precision pin holes and safety hardware 01 · SuspensionRigging & SafetyRails, fly plates, links, pins and clamps Round-hole perforated and powder-coated grille for a professional loudspeaker 02 · Acoustic protectionEnclosures & GrillesGrilles, chassis, rear plates and trays Heavy-duty powder-coated yoke bracket for a professional installation loudspeaker 03 · InstallationMounting HardwareYokes, wall mounts, pivots and pole cups Black anodized aluminum heat sink for an active loudspeaker amplifier 04 · Precision metalCNC & ThermalHeat sinks, adapters, knobs and brackets Injection molded horn and waveguide for a professional PA loudspeaker 05 · Functional polymerMolded & ElastomerHorns, frames, handles, feet and seals Sheet metal amplifier and interface panel for an active professional loudspeaker 06 · Electronics integrationPanels & InterfacesAmplifier panels, covers and internal mounts

Application Context

Parts developed around the loudspeaker system.

Component drawings are reviewed against their installation, acoustic, load-path, thermal, and service requirements. These views show where the manufactured hardware is used.

Professional installation loudspeaker secured by a fabricated steel yoke bracket
Installed system referenceLoudspeaker mountingYoke bracket, cabinet interface, fasteners

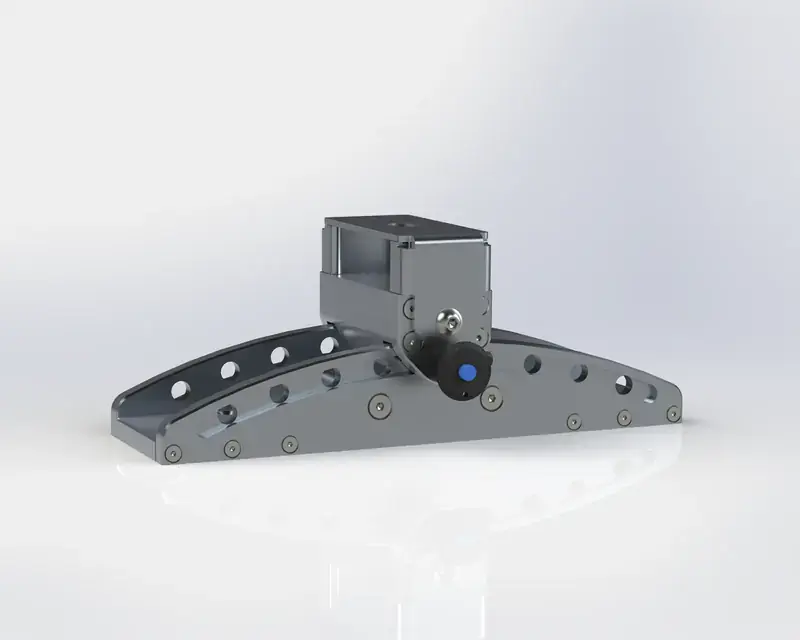

Machined and fabricated professional loudspeaker rigging assembly with indexed angle positions
Audio hardware referenceRigging integrationRails, links, pivots, locking hardware

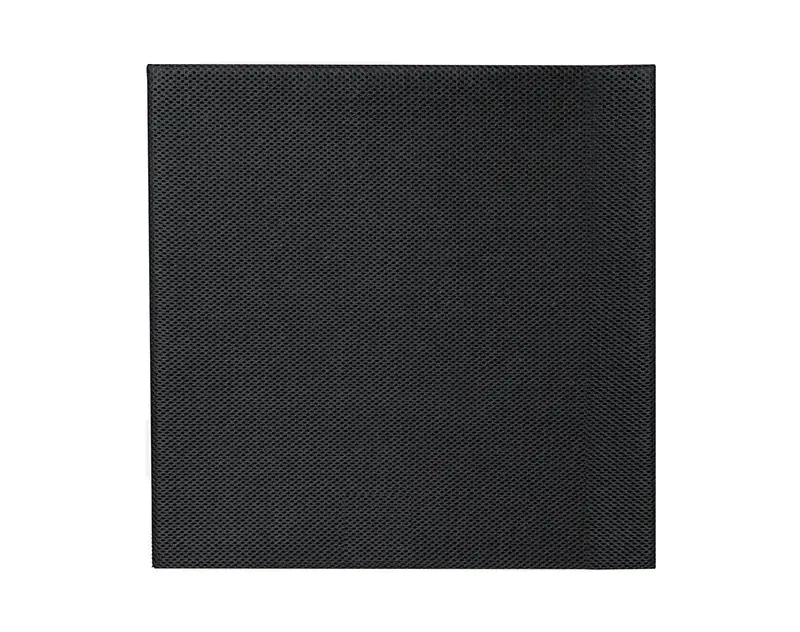

Black round-hole perforated grille for a professional installation loudspeaker
Audio hardware referenceAcoustic protectionOpen area, stiffness, foam clearance, finish

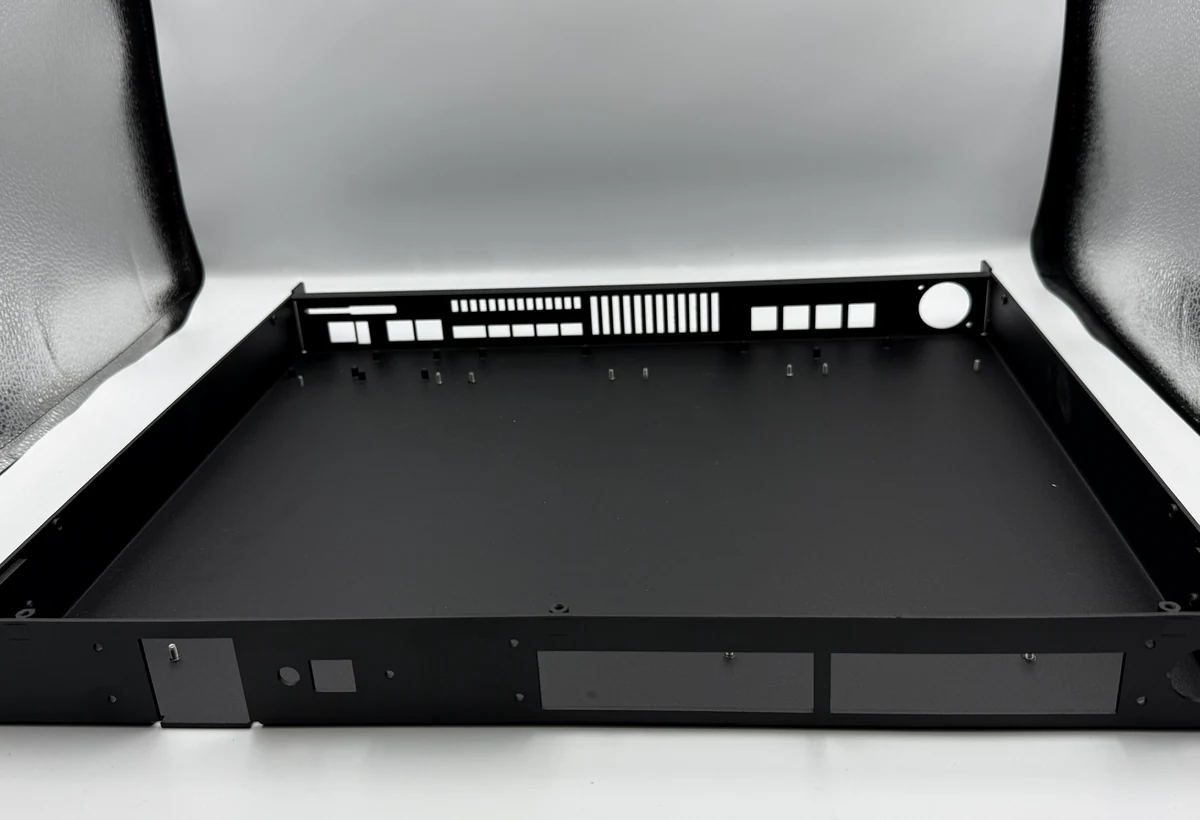

Fabricated and powder-coated sheet metal chassis for professional audio electronics
Component referenceAmplifier hardwareChassis, panels, ventilation, service access
01

Rigging & Safety

Hardware for suspended and portable systems.

Load-path parts are reviewed around array geometry, pin engagement, fastener access, edge condition, finish wear, and agreed inspection points.

  • Steel & aluminum
  • CNC & laser cutting
  • Coating & traceability

Load ratings, proof tests, and system certification are defined and approved for each customer project.

Discuss rigging hardware
Black line array speaker rigging rail with precision pin holes
Primary component

Line Array Rigging Rails

Machined or fabricated rails with controlled hole position, load-bearing interfaces, edge finish, and coating thickness.

Sheet metal · CNC · powder coating

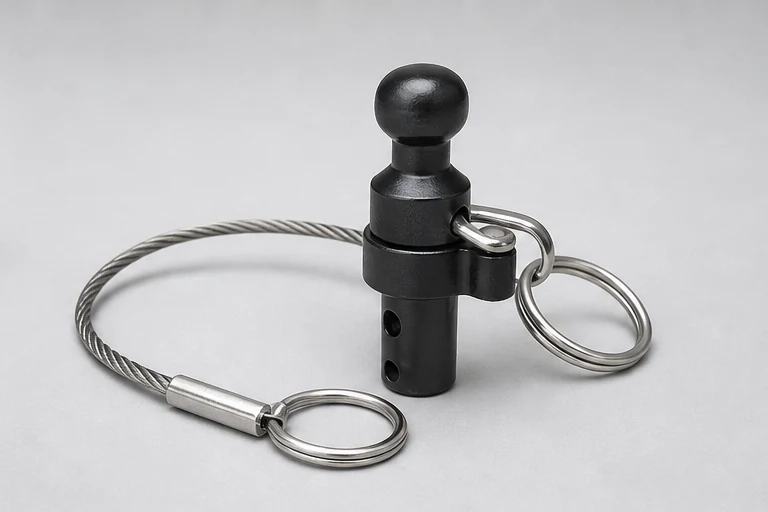

Ball-lock quick-release pin with stainless steel tether for speaker rigging

Quick-Release Pins

Captive ball-lock pins and tethers selected around engagement, handling, and retention.

Stainless steel · turning · assembly

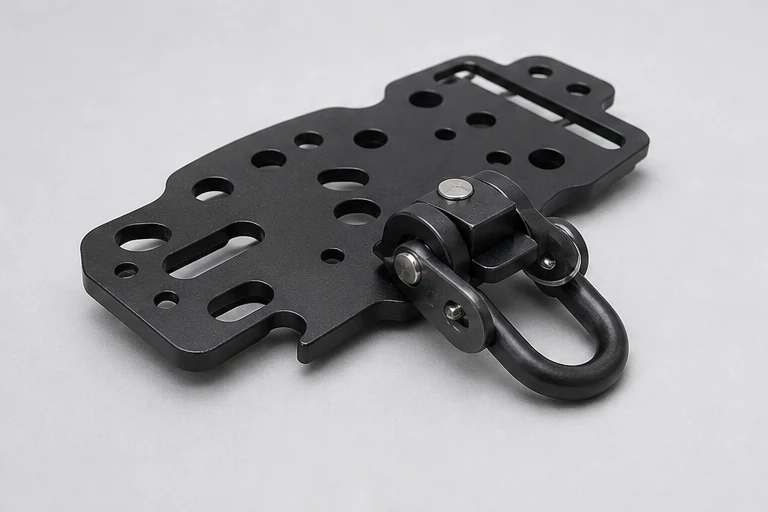

Powder-coated speaker fly plate with locking link

Fly Plates & Links

Suspension plates and links manufactured to the approved array geometry and pin pattern.

Laser cutting · machining · coating

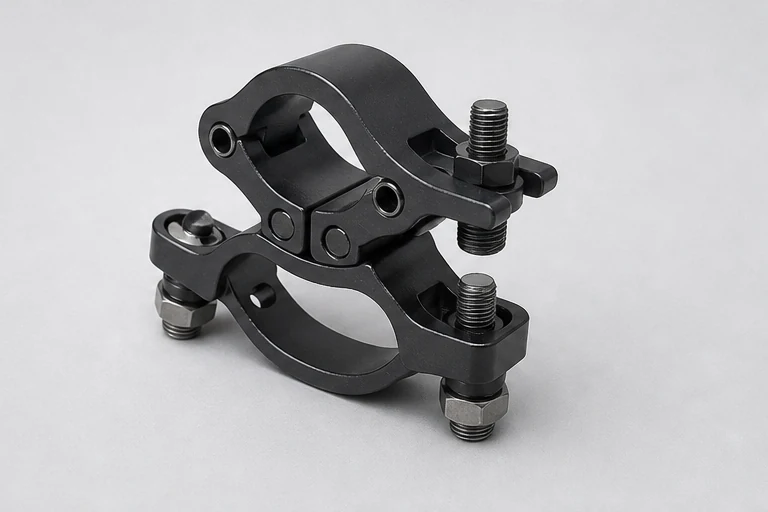

Black machined clamp bridge for professional audio rigging

Clamp Bridges

Structural clamp components reviewed for fit, load direction, and hardware access.

CNC · fabrication · assembly
02

Enclosures & Grilles

Protection, airflow, acoustics, and service access.

We coordinate open area, stiffness, ventilation, foam clearance, connector access, internal hardware, coating, and cosmetic expectations.

  • Perforated sheet
  • Laser cut & bent chassis
  • Powder coating
Discuss sheet metal parts
Formed round-hole perforated steel grille for a professional loudspeaker
Acoustic protection

Speaker Grilles

Perforated and formed grille systems balanced for acoustic openness, stiffness, cabinet fit, foam spacing, and durable finish.

Perforation · forming · powder coating

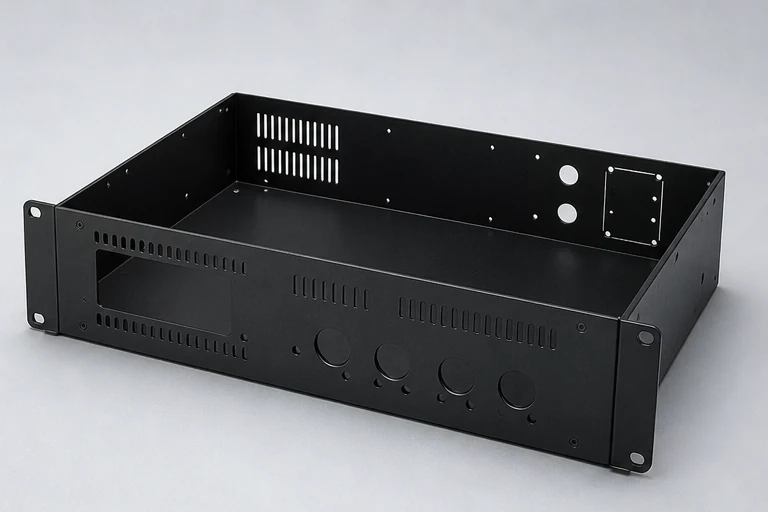

Black powder-coated rack amplifier sheet metal chassis

Amplifier Chassis

Ventilated housings, rack interfaces, partitions, and service-access features.

Laser cutting · bending · inserts

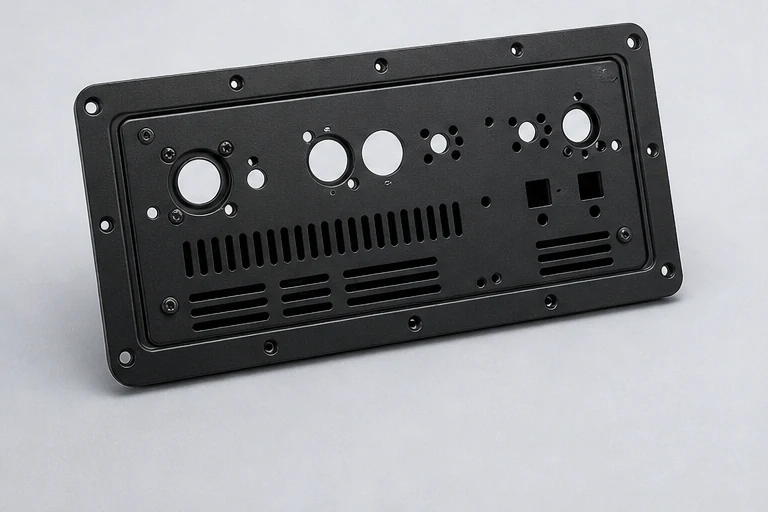

Blank active loudspeaker rear amplifier plate with ventilation and connector cutouts

Active Speaker Rear Plates

Rear modules coordinated around controls, power, signal, cooling, sealing, and service.

Sheet metal · machining · coating

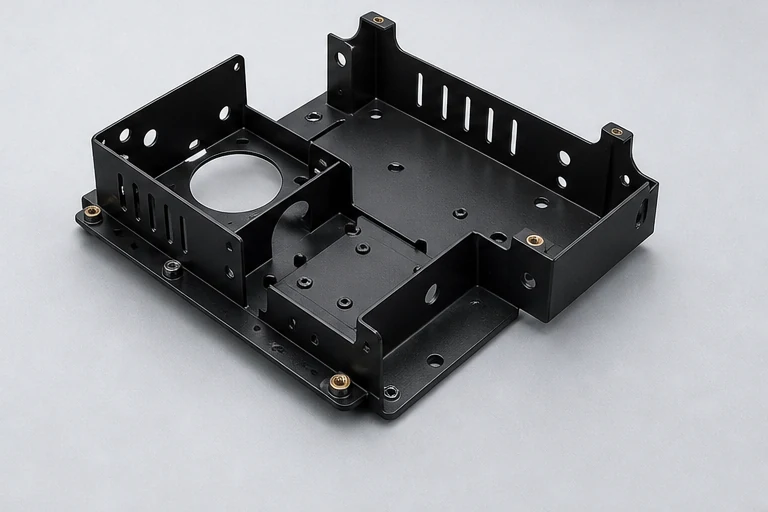

Bent sheet metal mounting tray for professional audio electronics

Internal Equipment Trays

Mounting structures for amplifier, DSP, crossover, transformer, and cable assemblies.

Fabrication · hardware · assembly
03

Mounting Hardware

Interfaces between the speaker and its installation.

Bracket and mounting programs are reviewed for cabinet interfaces, tilt range, locking positions, cable clearance, assembly sequence, and surface protection.

  • Wall & ceiling mounts
  • Yokes & clamps
  • Pole interfaces
Discuss mounting hardware
Heavy-duty powder-coated yoke bracket for an installation loudspeaker
Installation hardware

Speaker Yoke Brackets

Rigid wall, ceiling, and truss mounting brackets with controlled pivots, slot geometry, fastening access, and coating.

Steel plate · welding · powder coating

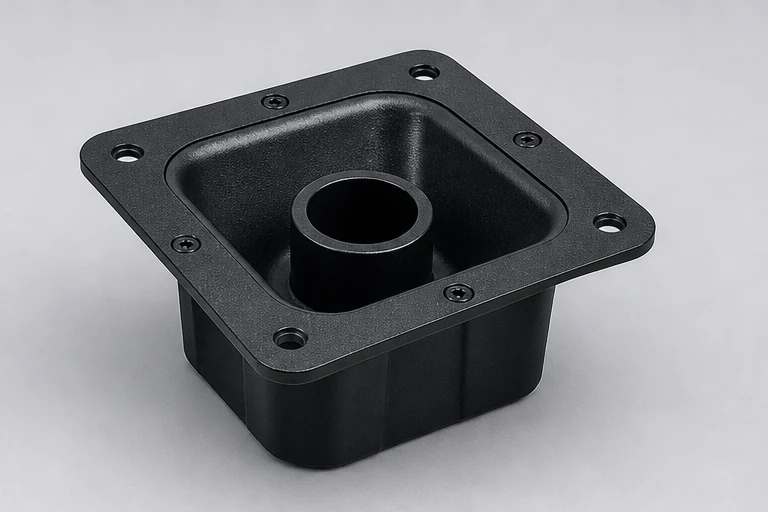

Recessed 35 millimeter pole mount cup for a PA loudspeaker cabinet

Pole Mount Cups

Flush and angled stand interfaces in formed metal or engineering polymer.

Stamping · casting · molding

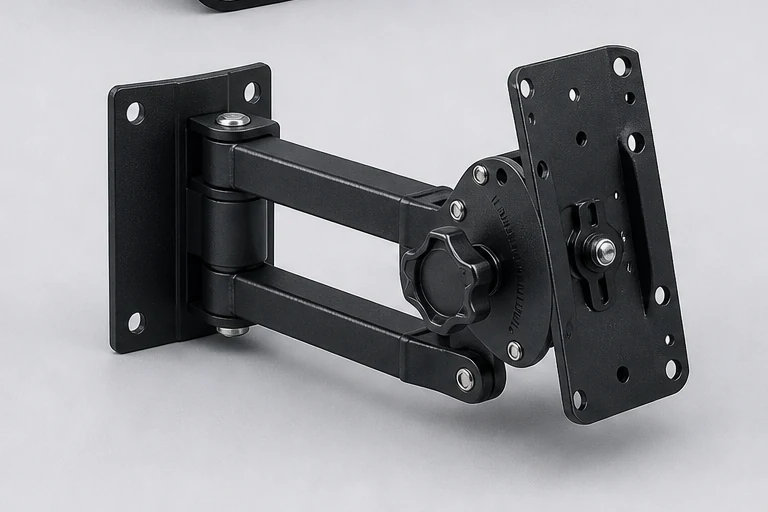

Adjustable tilt and swivel wall mount bracket for a professional loudspeaker

Wall Mount Brackets

Adjustable hardware with rotation, tilt, cable clearance, and locking features.

Fabrication · CNC · assembly

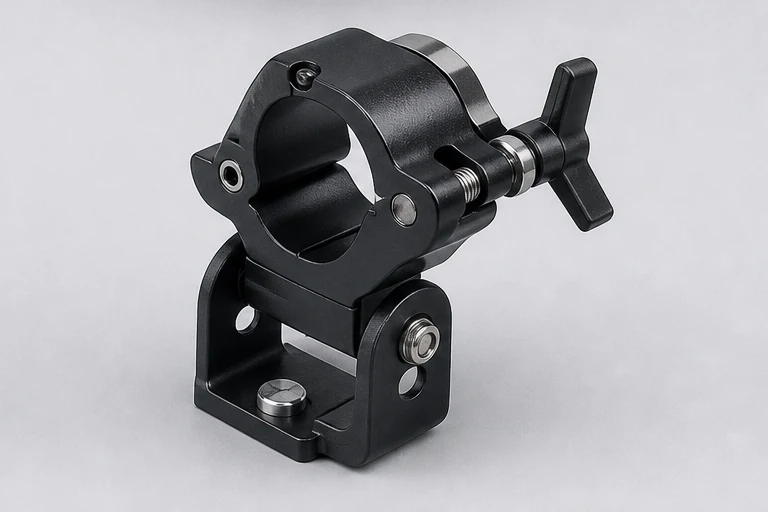

Truss clamp and pivot interface for mounting a professional loudspeaker

Truss Clamps & Pivots

Clamp bodies, pivots, knobs, and captive fastening assemblies for installed audio.

Machining · hardware kits
04

CNC & Thermal

Precision interfaces for heat, fit, and control.

Machined audio hardware is reviewed around mating datums, flatness, threaded features, thermal contact, surface appearance, and realistic production tolerances.

  • 6061 & 6063 aluminum
  • Milling & turning
  • Anodizing & marking
Discuss CNC audio parts
Black anodized finned aluminum heat sink for an active speaker amplifier
Thermal management

Aluminum Heat Sinks

Machined or extruded thermal parts with flat mounting interfaces, threaded patterns, airflow features, and cosmetic anodizing.

Extrusion · CNC · anodizing

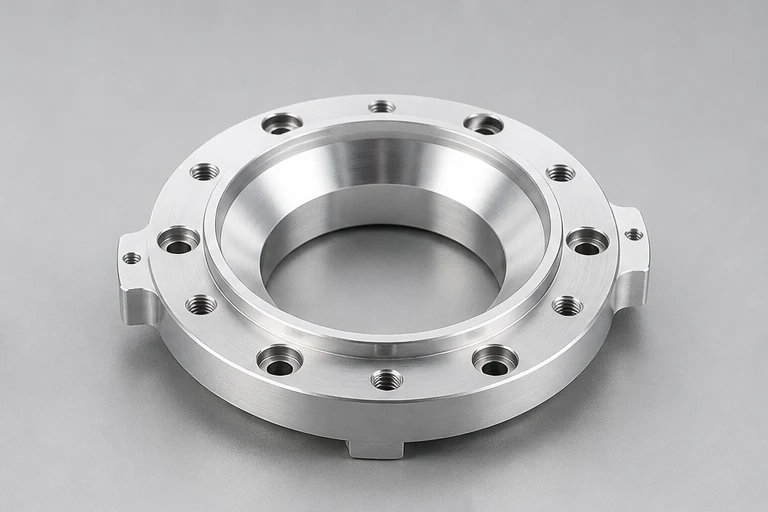

CNC machined aluminum compression driver adapter ring with acoustic bore

Driver Adapter Rings

Precision acoustic interfaces with controlled bolt circles, bores, datums, and flatness.

6061 aluminum · CNC milling
Black knurled aluminum control knobs and shaft adapter for audio equipment

Control Knobs & Adapters

Turned and milled controls, shafts, spacers, inserts, and cosmetic interfaces.

Turning · knurling · anodizing

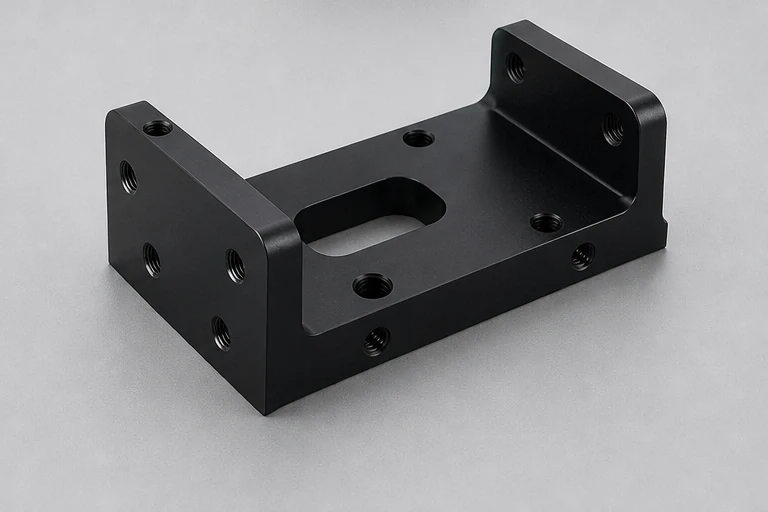

Black anodized CNC machined mounting bracket for professional audio electronics

Machined Audio Brackets

Locating and adapter brackets where position, flatness, thread quality, or appearance matters.

CNC milling · anodizing
05

Molded & Elastomer

Functional polymer parts shaped for production.

We support DFM, material selection, texture, parting line, draft, insert strategy, sealing, hardness, and tooling decisions for repeat audio programs.

  • ABS · PC/ABS · PA
  • Silicone · EPDM · TPE
  • Tooling & molding
Discuss molded components
Black injection molded constant-directivity horn and waveguide for a PA loudspeaker
Acoustic molding

Speaker Horns & Waveguides

Acoustic geometries supported through DFM, tooling, texture control, compression-driver fit, and repeat molding.

ABS · PC/ABS · glass-filled PA

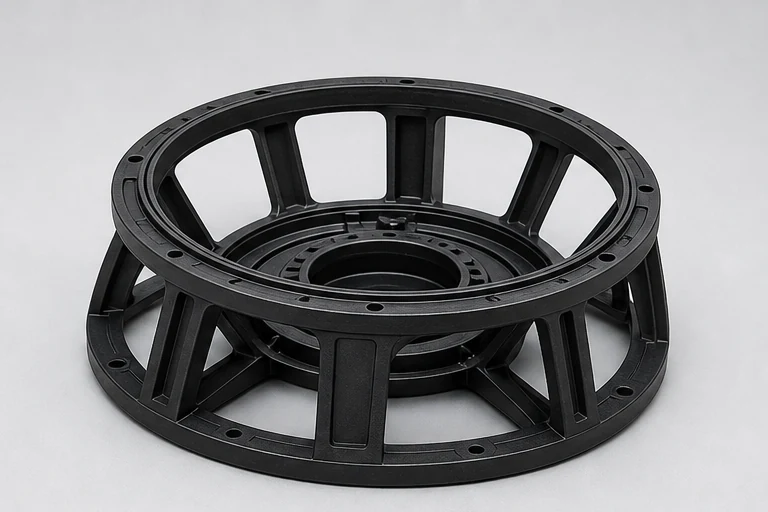

Glass-filled nylon molded structural frame for a professional loudspeaker driver

Structural Speaker Frames

Ribbed driver and cabinet structures reviewed for stiffness, bosses, inserts, and assembly.

Glass-filled PA · tooling · molding

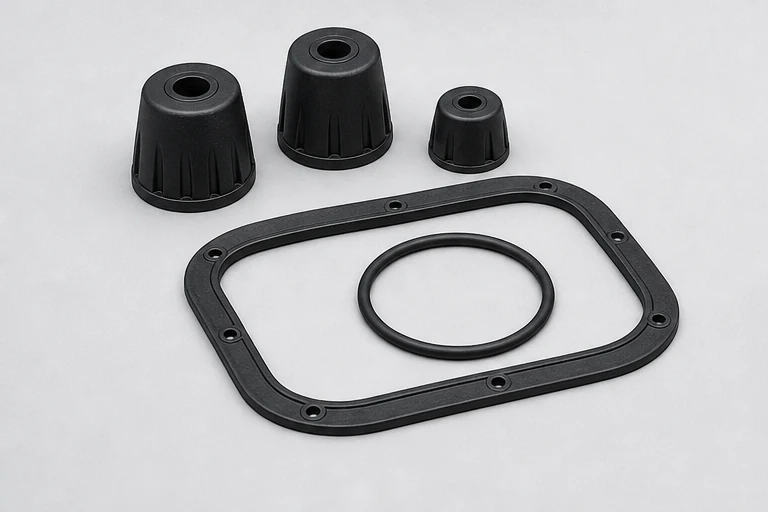

Molded rubber speaker cabinet feet with EPDM gasket and sealing ring

Cabinet Feet, Gaskets & Seals

Vibration isolation and sealing components matched to compression, hardness, and environment.

Silicone · EPDM · NBR · TPE

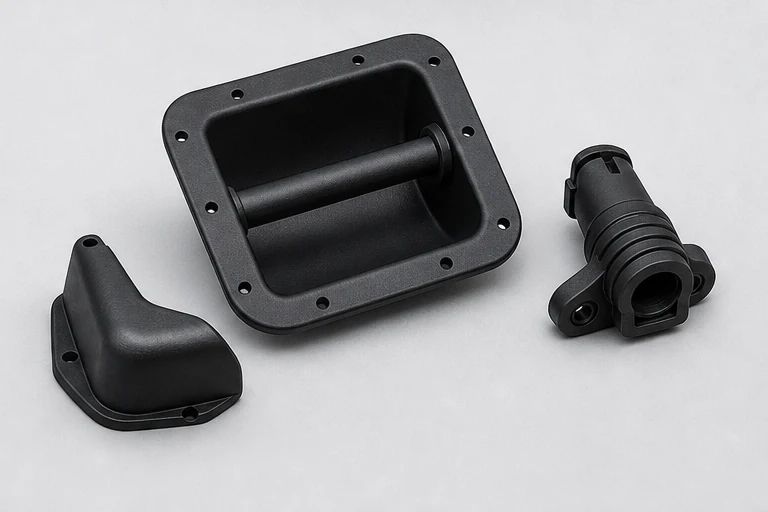

Molded recessed speaker handle, protective corner, and cable strain relief

Handles & Protective Plastics

Carry handles, cabinet corners, cable protection, and functional molded hardware.

Injection molding · inserts · texture
06

Panels & Interfaces

The mechanical layer around audio electronics.

Rear plates, internal panels, and covers are coordinated around connectors, controls, ventilation, labeling, PCB hardware, shielding, and service access.

  • Connector cutouts
  • PEM & captive hardware
  • Printing & laser marking
Discuss panels & interfaces

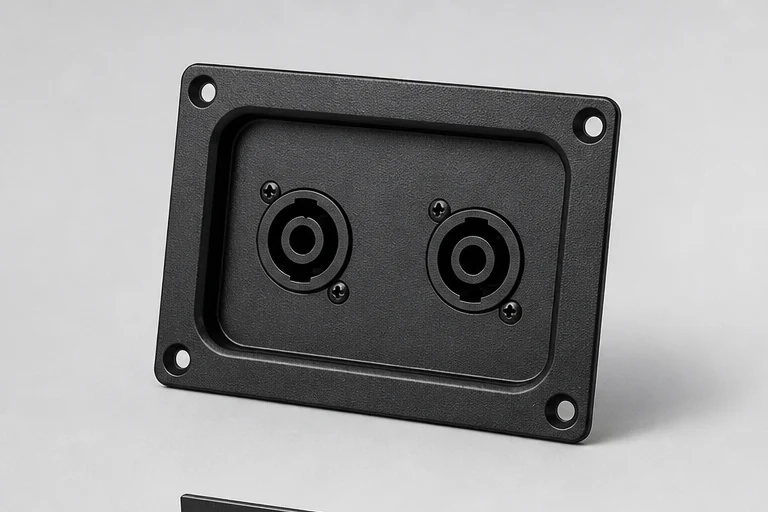

Blank powder-coated connector plate for a passive professional loudspeaker
Electronics integration

Amplifier & Interface Panels

Fabricated panels and housings prepared for controls, power, signal, ventilation, labeling, and final hardware installation.

Sheet metal · marking · assembly
Blank active loudspeaker amplifier panel with power signal control and ventilation openings

Active Speaker Amplifier Panels

Mechanical interfaces for controls, power, signal, airflow, and amplifier modules.

CNC · sheet metal · finishing

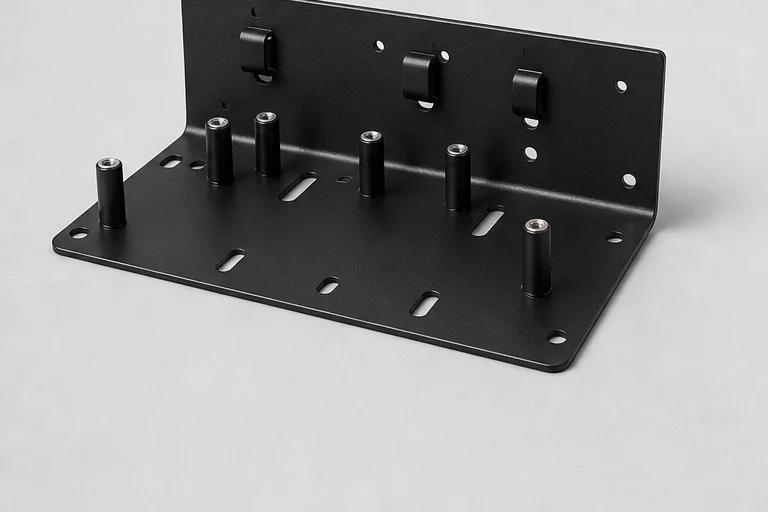

Bent internal mounting panel with standoffs for a loudspeaker crossover assembly

Crossover Mounting Panels

Standoffs, cable-tie slots, fastener access, and locating features for internal electronics.

Laser cutting · bending · inserts

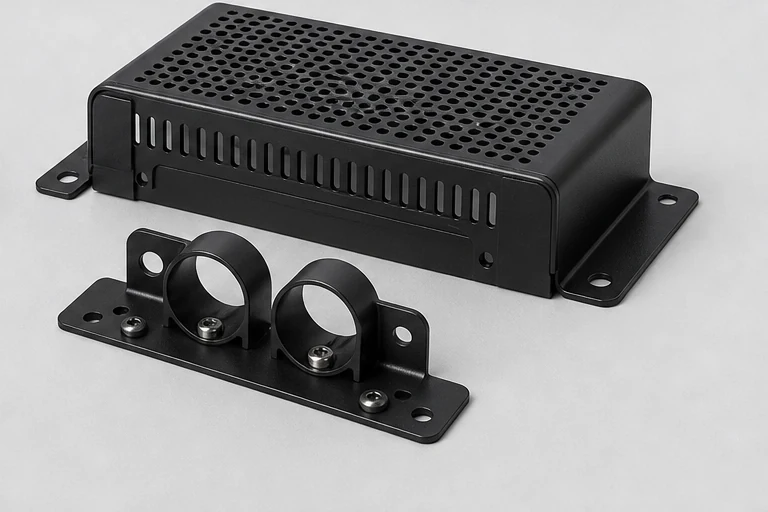

Perforated protective cover and cable brackets for a speaker amplifier module

Protective Covers & Cable Brackets

Ventilated guards and retention hardware for amplifier, power, and cable assemblies.

Perforation · forming · hardware

Before We Quote

We review the interfaces around the part, not only the part itself.

See design engineering review See component inspection planning See audio application studies
01

System interface

Mating geometry, cabinet wall, fasteners, cable clearance, and assembly access.

02

Functional demand

Load, vibration, acoustic openness, thermal path, sealing, and wear.

03

Production route

Material, tooling, tolerance, finish masking, inspection, and packaging.

04

Release evidence

Approved drawings, material records, inspection reports, and packing confirmation as agreed.

Start With Your CAD

Have an audio component ready for manufacturing review?

Send the drawing, annual quantity, material or performance target, finish, and mating-part context. We will return with process questions and a quotation path.

Upload DrawingContact Engineering
